King KWL-1016C 10" x 16" Wood Lathe

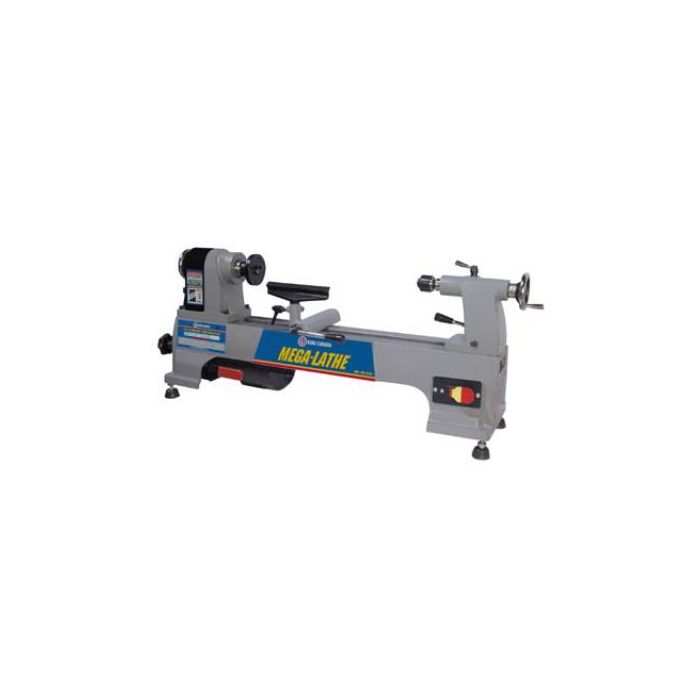

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$549.99
Model No: KWL-1016C
Website Product ID: 7476

Features

  • All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
  • 10" inboard swing for bowl turning
  • Maximum turning capacity of 6" between centers
  • Easy access 6-speed step pulley matches speed with specific turning operation
  • Large 6" toolrest for flexibility in turning positions
  • Toolrest post clamp can be positioned on either side

Specifications

  • Swing over bed : 10"
  • Swing over base : 7 1/2"
  • Distance between centers : 16"
  • Spindle size (RH thread) : 1" x 8 TPI
  • Spindle speeds : 6 (480, 1270, 1960, 2730, 3327, 4023 RPM)
  • Headstock, tailstock taper : MT #2
  • Self-ejecting tailstock travel : 3 1/2"
  • Motor : 1/2 HP, 1720 RPM
  • Voltage : 110V, 1 phase, 60 Hz
  • Assembled dimensions : .
  • Length : 4''
  • Width : 10''
  • Height : 15''
  • Weight : 106 lbs

Includes

  • (1) 10" x 16" Wood Lathe (KWL-1016C)
  • (1) MT#2 live center
  • (1) MT#2 spur center
  • (1) 3" faceplate
  • (1) Steel knock-out bar
  • (1) Hex. keys
  • (1) Safety glasses
