King KC-1220 12" x 20 Ga. Shear, Brake and Roll

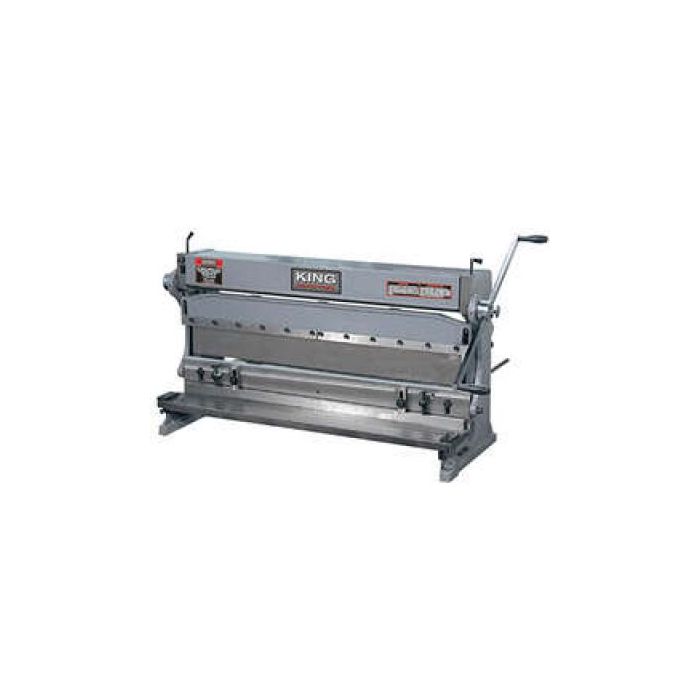

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$659.00
Model No: KC-1220
Website Product ID: 34311

Features

  • Sturdy cast-iron frame
  • Bed is precision ground for an accurate working surface
  • Dual edge, reversible shear blade
  • One female "V" shaped die
  • Slip Rolls are precision turned, ground and polished with wire grooves
  • Includes adjustable length stop, height stop block and extension bars with 90º angles

Specifications

  • SHEAR :
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 12"
  • Material stop range : 2 1/2” - 10 5/8”
  • BRAKE :
  • Maximum thickness (mild steel) : 20 Gauge
  • Shut height : 2 1/2”
  • Material stop range : 1 3/4” - 10 1/4”
  • Male die sizes : 4”, 3”, 2”, 2”, 1”
  • SLIP ROLL :
  • Number of rolls : 3
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 10 3/4”
  • Roller diameter : 1 1/2”
  • Minimum roll diameter : 1 5/8” ID/DI
  • Minimum radius : 13/16”
  • Wire groove diameters : 5/64”, 7/64”, 9/64”, 11/64”, 13/64”, 15/64”
  • Assembled dimensions (LxWxH)/weight : 20” x 16” x 15” / 95 lbs
  • Package dimensions (LxWxH)/weight : 19-1/4” x 13” x 16-1/2” / 99 lbs

Includes

  • (1) 12" x 20 Ga. Shear, Brake and Roll (KC-1220)
