King KC-235PM 13" PLANER/MOULDER

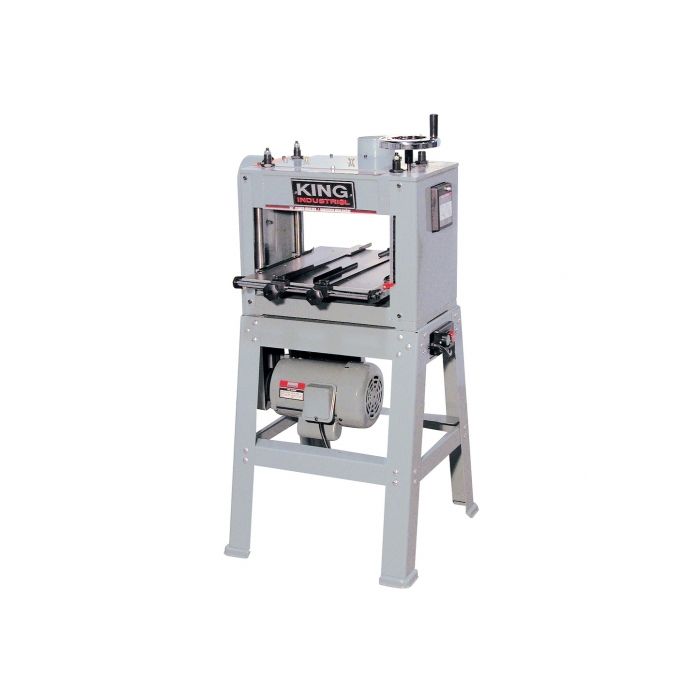

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$1,999.00
Model No: KC-235PM
Website Product ID: 76312

13" PLANER/MOULDER

Features

  • Powerful 1.5 HP motor
  • Double drive belt system
  • Table raises and lowers on four precision ground columns
  • Comes complete with stand, planing knives, setting gauge and 4" dust chute for dust collector hook-up
  • Jack Screw cutterhead system - Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place
  • Moulding cutterhead guide system - Specially designed for guiding the workpiece into the moulding cutters

Specifications

  • MAXIMUM PLANING WIDTH 13"
  • MAXIMUM MOULDING WIDTH 13"
  • MAXIMUM PLANING THICKNESS 6-1/8"
  • MAXIMUM MOULDING THICKNESS 6-1/8"
  • MINIMUM LENGTH OF STOCK FOR PLANING 6.7"
  • MINIMUM LENGTH OF STOCK FOR MOULDING 6.7"
  • MAXIMUM PLANING DEPTH 1/8"
  • MAXIMUM MOULDING DEPTH 3/4"
  • CUTTERHEAD SPEED 4,500 RPM
  • NUMBER OF KNIVES 3
  • PLANING FEED RATE 20 SFPM
  • MOULDING FEED RATE 10 SFPM
  • MOTOR 18 Amp. @ 110V, 9 Amp. @ 220V
  • VOLTAGE 110/220V, 1 phase, 60 Hz
  • PRE-WIRED 110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 21" x 12" x 50" / 231 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT 33-1/4" x 19-1/2" x 23-5/8" / 238 lbs
  • UPC 7 72995 00233 7

Includes

(1)KC-235PM
