King KC-1300BM 13 -SPINDLE LINE BORING MACHINE

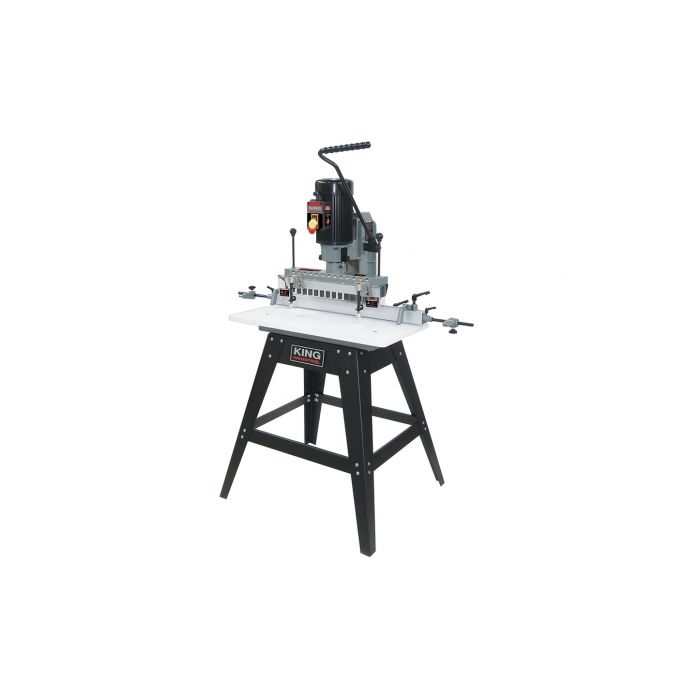

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$2,999.00
Model No: KC-1300BM
Website Product ID: 76303



13 -SPINDLE LINE BORING MACHINE

Features

  • Powerful 1.5 HP, 110V motor
  • Designed for simultaneous multi-hole line boring or drilling, ideal for cabinet makers or shelving applications
  • 13 spindles spaced 32mm (1-1/4") on centre, allowing drilling up to 13 evenly spaced holes
  • Fully adjustable aluminum fence with work stops at each end to line up workpiece from the right or left to perform parallel boring patterns
  • Indexing pins allow correct spindle alignment for resuming line boring operations in long workpieces
  • Large 31-1/2" x 15-3/4" melamine table top
  • Comes complete with open steel stand

Specifications

  • NUMBER OF SPINDLES 13
  • COLLET SIZE 3/8" (10 mm)
  • SPINDLE CENTRES 32 mm (1-1/4")
  • SPINDLE SPEED 3,500 RPM
  • TABLE SIZE 31-1/2" x 15-3/4"
  • MAXIMUM DEPTH OF STROKE 2-1/2"
  • MAXIMUM STOCK THICKNESS 5-1/2"
  • MOTOR 1-1/2 HP, 12.6 Amp.
  • VOLTAGE 110V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT 76" x 28-1/2" x 67" / 215 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT 34-1/4" x 21-1/4" x 28-1/4" / 225 lbs
  • UPC 7 72995 01443 9

Includes

(1) KC-1300BM
