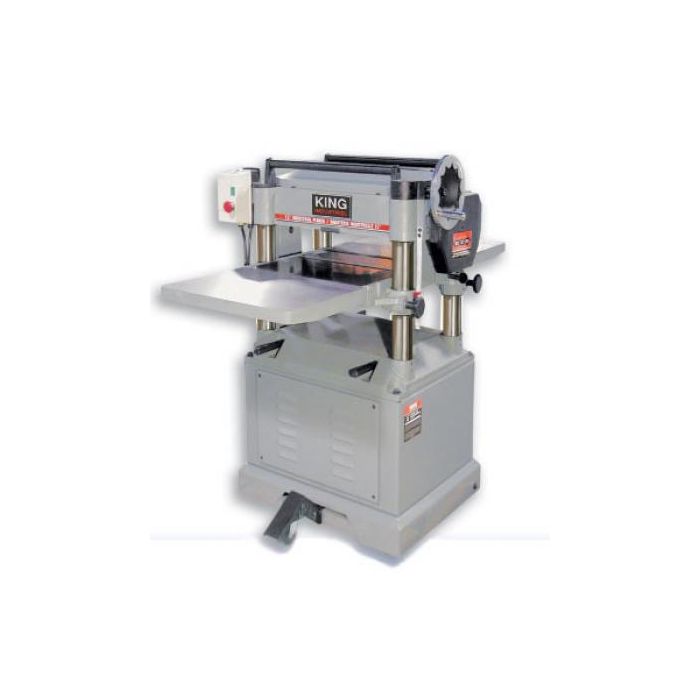

King KC-390FX 15" Planer with Spiral Cutterhead

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$3,249.99
Model No: KC-390FX
Website Product ID: 7405

Features

  • Powerful 3 HP motor
  • A spiral cutterhead makes 50% less noise than a conventional cutterhead
  • Table raises and lowers on four precision ground columns for extra stability
  • Anti-kickback fingers in front of the infeed roller to prevent wood kickback
  • Magnetic safety switch
  • Stock return rollers on top of planer for multiple passes
  • Cast-iron extension tables provide support for longer material
  • Mobile base system built into the cabinet

Specifications

  • Maximum planing width : 15”
  • Maximum planing thickness : 8”
  • Maximum depth of cut : 1/8”
  • Cutterhead speed : 5,000 RPM
  • Cutterhead diameter : 2 7/8”
  • Spiral cutter inserts : 64 (14mm x14mm x 2mm)
  • Feed rate : 2 (16-30) FPM
  • Number of cuts per inch : 78-63
  • Motor : 15 Amp.
  • Voltage : 220V, 1 phase, 60 Hz
  • Assembled dimensions (LxWxH)/weight : 32 1/2” x 42” x 45” / 625 lbs

Includes

  • 15” Planer With Spiral Cutterhead
  • Cabinet Stand
  • 4” Dust Collector Outlet
