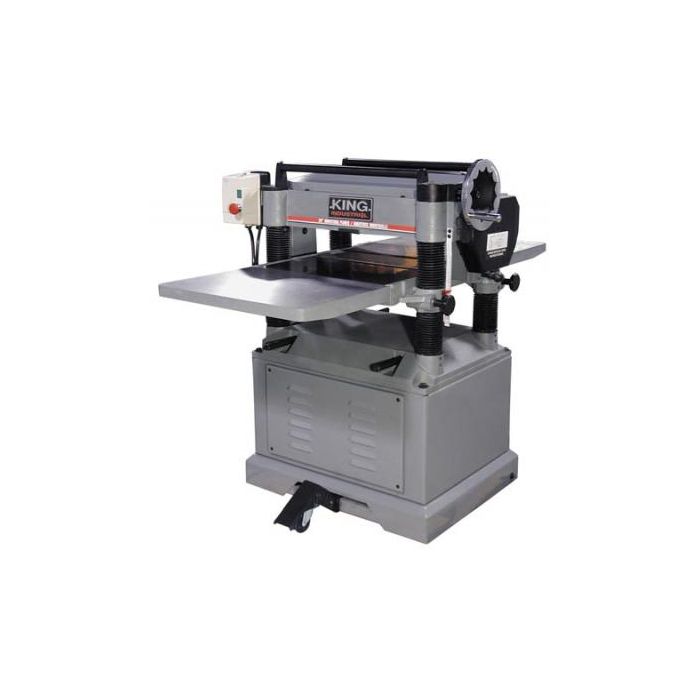

King KC-520C 20" Planer

Brand New


this item condition is new

1 In Stock


this item is currently in stock
CA$3,399.00
Availability: 1 In Stock. Pay today, ships today
Model No: KC-520C
Website Product ID: 7406

Features

  • 20" Planer
  • Powerful 3 HP motor
  • Solid cast-iron extension tables provide support for longer material
  • Mobile base system built into cabinet
  • Table raises and lowers on four precision ground columns for extra stability
  • Anti-kickback fingers in front of the infeed roller prevents wood kickback
  • Magnetic safety switch
  • Stock return rollers on top of planer for multiple passes
  • Comes complete with planer knives, knife setting gauge and 5" dust chute for dust collector hook-up
  • Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods

Specifications

  • Maximum planing width : 20"
  • Maximum planing thickness : 8"
  • Maximum depth of cut : 3/32"
  • Total surface of work table : 56-1/2" x 20"
  • Cutterhead speed : 5,000 RPM
  • Cutterhead diameter : 3.15"
  • Number of knives : 4
  • Feed rate : 2 (16-20) FPM
  • Number of cuts per inch : 104-83
  • Motor : 18 Amp.
  • Voltage : 220V, 1 phase, 60 Hz
  • Assembled dimensions (LxWxH)/weight : 40” x 56-1/2” x 42” / 830 lbs

Includes

  • (1) 20" Planer (KC-520C)
