King KC-3020 30" x 20 Ga. Shear, Brake and Roll

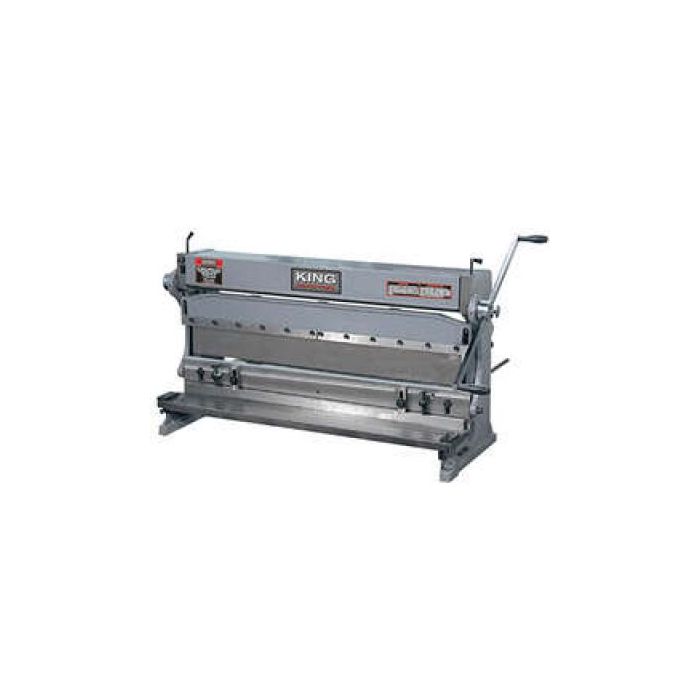

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$999.00
Model No: KC-3020
Website Product ID: 34312

Features

  • Sturdy cast-iron frame
  • Bed is precision ground for an accurate working surface
  • Dual edge, reversible shear blade
  • One female "V" shaped die
  • Slip Rolls are precision turned, ground and polished with wire grooves
  • Includes adjustable length stop, height stop block and extension bars with 90º angles

Specifications

  • SHEAR :
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 30"
  • Material stop range : 3 1/4” - 19 1/2”
  • BRAKE :
  • Maximum thickness (mild steel) : 20 Gauge
  • Shut height : 5 1/8”
  • Material stop range : 3 1/4” - 19 1/2”
  • Male die sizes : 10”, 8”, 6”, 3”, 2”, 1”
  • SLIP ROLL :
  • Number of rolls : 3
  • Maximum thickness (mild steel) : 20 Gauge
  • Maximum length : 29"
  • Roller diameter : 1 1/2”
  • Minimum roll diameter : 1 1/2" ID
  • Minimum radius : 3/4"
  • Wire groove diameters : 5/32”, 13/64”, 7/32”
  • Assembled dimensions (LxWxH)/weight : 40” x 30” x 22” / 300 lbs
  • Package dimensions (LxWxH)/weight : 39” X 16” X 26” / 337 lbs

Includes

  • (1) 30" x 20 Ga. Shear, Brake and Roll (KC-3020)
