  • 8'' X 13'' VARIABLE SPEED WOOD LATHE

King KWL-813VS 8'' X 13'' VARIABLE SPEED WOOD LATHE

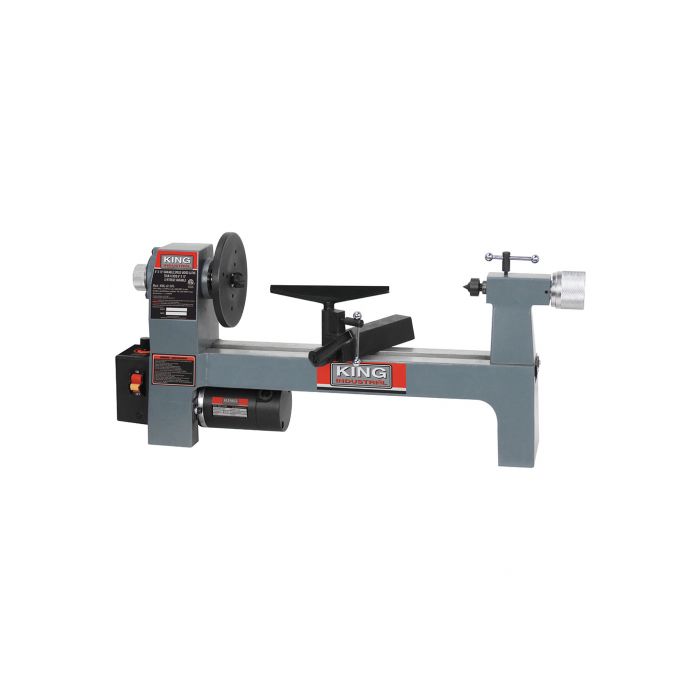

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$296.99
Model No: KWL-813VS
Website Product ID: 76371

8'' X 13'' VARIABLE SPEED WOOD LATHE

Features

  • High performance 1/3 HP (300 Watt) DC motor
  • Ideal for pens and other small detailed turnings
  • All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
  • 8" inboard swing for bowl turning
  • Maximum turning capacity of 13" between centers
  • Variable speed range of 750 to 3200 RPM
  • Chrome plated handwheels on both the headstock and tailstock
  • Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys

Specifications

  • SWING OVER BED 8"
  • swing over tool post base 5-1/4"
  • distance between centers 13"
  • spindle size (rh thread) 1" x 8 TPI
  • spindle bore 3/8"
  • variable speed range 750 - 3200 RPM
  • headstock, tailstock taper MT #1
  • tailstock travel 1-9/16"
  • dc motor 1/3 HP, 3.2 Amp., 4,600 RPM
  • voltage 120V, 1 phase, 60 Hz
  • assembled dimensions (lxwxh) / weight 27-3/4" x 10" x 12-1/4" / 42 lbs
  • package dimensions (lxwxh) / weight 28" x 13-1/4" x 7-5/8" / 47 lbs
  • upc 7 72995 01677 8

Includes

(1)KWL-813VS
