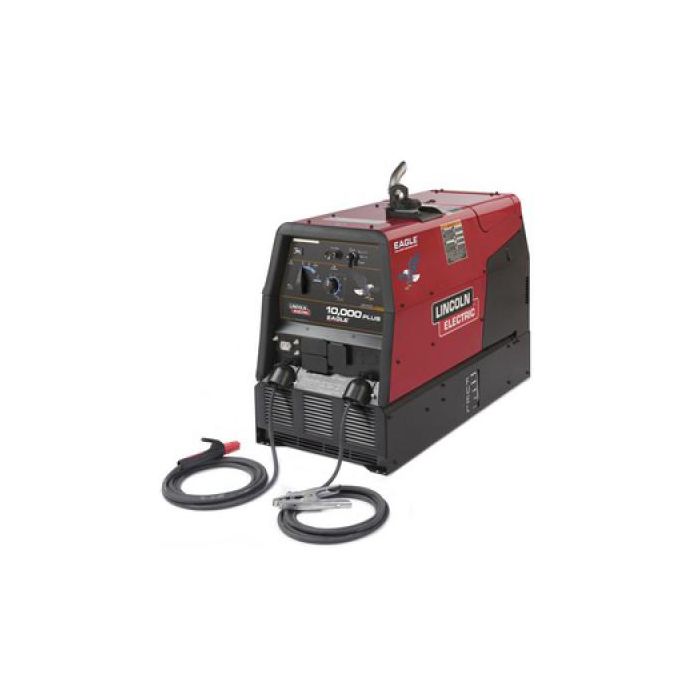

Lincoln Electric K2343-3 Eagle™ 10,000 Plus Engine Driven Welder

Features

• Make Work Fly with an Eagle™ 10,000 Plus! A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Eagle™ 10,000 Plus does a variety of basic welding jobs. And with 10,500 watts of surge AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power.
• .
• Top-of-the-line OHV engine: Kohler ® Command ® 23 HP CH730
• Three engine doors provide machine protection and easy service access
• Easy to Maintain – Engine requires an oil change only every 100 hours and every 200 hours for the oil filter
• Electric Start Switch for easy starts. Switch combines OFF, START, and IDLER functions into one simple, compact, easy to use switch
• Circuit breaker on the 12V battery circuit provides added component protection
• Convenient truck or trailer mounting with front and rear holes in base
• Fuel level slots in both sides of the base with a decal to easily read the fuel level in the tank. Helps you avoid running out of fuel during critical jobs
• Large top fuel filler neck is easily accessed for refueling
• Oil drain valve (no tools required) with removable extension tube
• Processes Stick, TIG, MIG, Flux-Cored, Gouging
• Applications: Construction, Maintenance and Repair, Ranch/Farm
• .
• Recommended Accessories:
• General Options: Power Plug Kit (20 amp), Full-KVA Adapter Kit, GFCI Receptacle Kit, Spark Arrester Kit, Canvas Cover (Large), All Terrain Undercarriage, Factory Undercarriage, Welding Gas Cylinder, LPG Tank Holder, Small Two-Wheel Road Trailer with Duo-Hitch, Fender and Light Kit, Cable Rack
• TIG Options: PTA-26V TIG Torch (25 ft 2pc), Parts Kit, Square Wave™ TIG 175 TIG Welder
• Wire Feeder Options: EasyMIG® 180 Welder, Magnum® PRO 100SG Spool Gun
• Plasma Cutting Options: Tomahawk® 1000 Plasma Cutter w/ Hand Torch
• .
• Arc Performance:
• Smooth DC welding output for a broad range of stick electrodes
• Choose DC(+) for a deep penetrating arc or DC(-) for less penetration on thin sheet metal
• Rated 225 amps/25 volts/40% duty cycle and 210 amps/25 volts/100% duty cycle for CC. All rated outputs at 104°F (40°C)
• Simple Output Range Selector can be used to select 1 of 3 amperage ranges with generous overlap for Stick/TIG welding
• Fine adjustment control allows you to dial in just the right welding output for each application
• Add productivity with self-shielded flux-cored wire welding in CC mode. Compatible with Lincoln Electric across-the-arc wire feeders for use with a variety of wire electrodes. For applications where weld quality and deposition properties are not critical
• Expand to AC TIG welding with optional Square Wave ™ TIG 175 or Invertec ® V205-T AC/DC (powered by AC generator power from the Eagle ™ 10,000 Plus) for aluminum and other alloy welding
• Arc gouge with up to 5/32 in. (4.0 mm) carbon electrode
• .
• AC Generator Performance:
• 10,500 watts surge AC generator power. Most surge power in its class. Use for motor starting.
• 9,000 watts continuous AC generator power. For high capacity needs such as a back-up generator, powering a Tomahawk ® 1000 plasma cutter, an Invertec ® inverter welder or a Square Wave ™ TIG 175 welder. Also for lights, a grinder or other power tools
• Delivers up to 38 amps from the single 120V/240V full-KVA receptacle. Standard circuit breakers protect the machine as well as your power tools
• Delivers up to 40 amps from two 120V duplex receptacles
• Get two tools in one when you use the Eagle ™ 10,000 Plus as a power generator for emergency standby power, and/or for welding
• Optional GFCI (Ground Fault Circuit Interrupter) Kit available for additional protection from electrical shock for 120V receptacles
• Simultaneous welding and AC generator power – power up to 3,950 watts while welding at 145 amps
