King KC-7280V3-MS KING 2-STAGE 7.5 HP 80 GALLON AIR COMPRESSOR

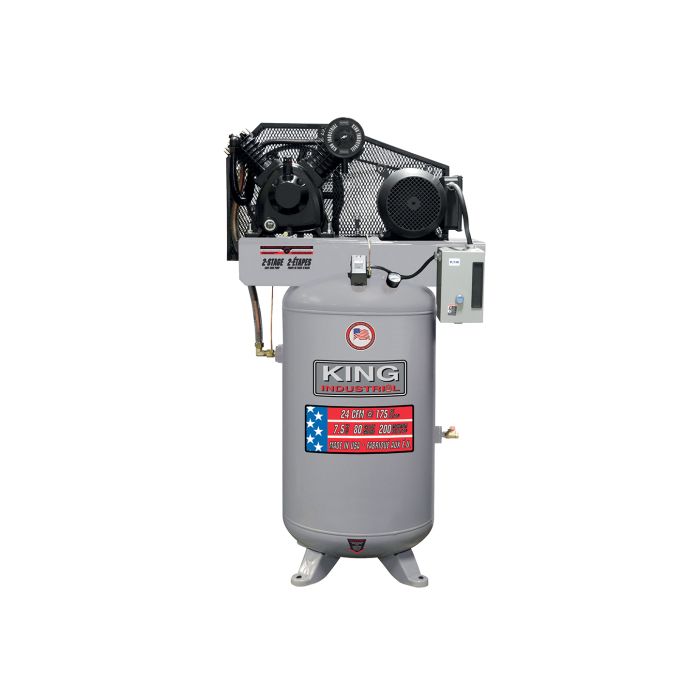

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$3,999.00
Model No: KC-7280V3-MS
Website Product ID: 76513

2-STAGE 7.5 HP 80 GALLON AIR COMPRESSOR




Features

  • Powerful 7.5 HP running motor and magnetic starter
  • 2 cylinder cast iron 2-stage oil lubricated pump
  • 200 PSI max pressure for optimum tool performance
  • 80 Gallon ASME registered tank provides longer run times
  • ASME safety valve
  • Large intake "Auto-drop" aluminum filter
  • Heavy-duty 1/2" ball valve and easy to read tank pressure gauge
  • Pump with "V" style design minimizes vibrations, improves cooling and extends compressor life

Specifications

  • MOTOR 7.5 HP
  • FACTORY PRESSURE SETTING 95-175 PSI
  • MAXIMUM PRESSURE 200 PSI
  • AIR DELIVERY @ 175 PSI 24 CFM
  • Tank size 80 Gallon
  • motor amperage 35.5 Amp.
  • RPM 1,760
  • voltage 208-230, 1 phase, 60 Hz
  • assembled dimensions (lxwxh) / weight 39" x 27" x 70-1/4" / 520 lbs
  • package dimensions (lxwxh) / weight 40" x 30" x 73" / 560 lbs
  • upc 7 72995 02115 4

Includes

(1)KC-7280V3-MS
