The Power Wave® Advanced Module enhances the capabilities of our 3rd generation Power Wave® S and R series power sources*. The module provides access to advanced welding processes such as AC, STT®, Rapid X® and Low Fume Pulse® while featuring a dedicated Twist-Mate™connection for High Frequency GTAW (TIG) applications.
*Not compatible with Power Wave® S700
Features
Enhanced Process Capabilities - Provides automatic multi-process polarity switching and access to advanced processes such AC, STT®, Rapid X®and Low Fume Pulse®while featuring a dedicated Twist-Mate™connection for High Frequency GTAW (TIG) applications
ArcLink®Digital Communications with Integrated Control Cables - Allows for simple and fast plug-&-play operation.
Quick Lock Mounting System - Secures directly underneath power source for a clean solution that minimizes equipment footprint maximizes convenience.
Compact and Durable - IP23 rated to withstand harsh environments.
Intelligent Protection - Prevents potential damage caused by misconnection and voltage transients.
Smart Fan Operation - Synchronizes with Power Wave®power source to only run when needed to minimize noise and energy consumption.
Industry Leading 5 Year Warranty
Specifications
Product Name:Power Wave® Advanced Module Product Number:K3685-1 Input Power: 40 V DC Rated Output Capacity Current/Voltage/Duty Cycle: 100% Duty Cycle: 300A@32V 40% Duty Cycle: 350A@34V Peak (Max.): 600A H x W x D inches: 11.5 x 14 x 25 Net Weight lbs.: 70.5

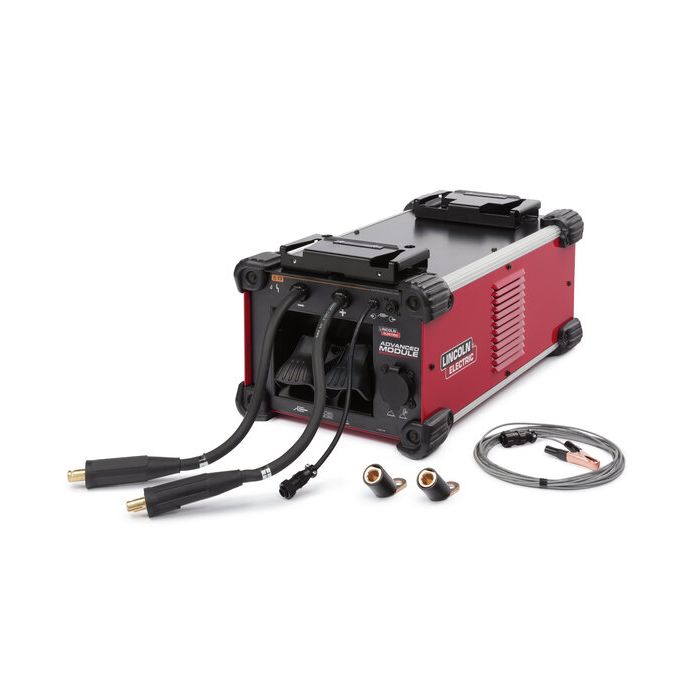

Includes
» Power Source Output Pigtail Adapter Cable (Tweco-style) » 25 ft. (7.6 m) Remote Voltage Sense Lead » ArcLink Output Receptacle » Differential Input and Output (Sync Tandem Output) » Shielding Gas Input
