Lincoln Electric U3458-1 Ranger 260MPX Engine Driven Welder

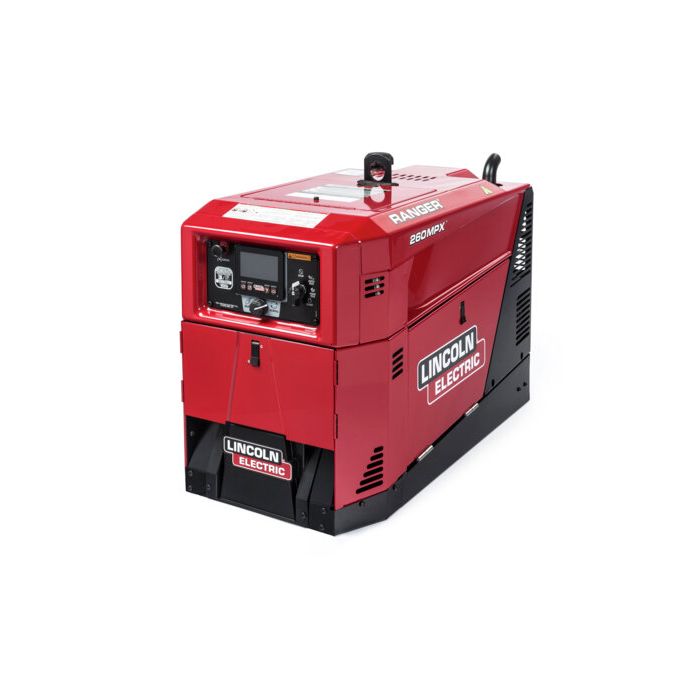

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Used


this item condition is used

Special Order


usually ships within 10-15 business days
CA$7,484.99
Model No: U3458-1
Website Product ID: 76643

Ranger 260MPX Engine Driven Welder

Features

  • Compact Size
  • Low Decibel Rating
  • Easy-to-Use Digital User Interface
  • Clean AC Generator Power

Specifications

Dimensions (H x W x D) 26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)
Net Weight 446 lbs (202 kg)
Machines Processes Stick (SMAW)
TIG (GTAW)
MIG (GMAW)
Flux-Cored Self-Shielded (FCAW-S)
Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating 231A / 29.2V / 100% @ 104°F (40°C)
Output Range by Mode CC-Stick: 35 –260 Amps, Touch Start TIG: 20 – 250 Amps, CV-Wire: 14 – 28 Volts
Single Phase Auxiliary Output 9,500 Watts Continuous, 120/240V
Auxiliary Output Frequency 60 Hz
Receptacle Types NEMA 5-20R
NEMA 6-50R
NEMA 14-50R
Engine Brand & Model Kohler OHV Command CH730
Engine Description 2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower 23.5 HP
High Idle Operating Speed @ Rated Output 3600
Fuel Tank Size (US gal.) 11
Fuel Tank Size (L) 41.6
Oil Capacity (qts.) 2.0
Oil Capacity (L) 1.9

Includes

  • (1) Ranger 260MPX Engine Driven Welder
