Milwaukee 2217-20NST True RMS Multimeter

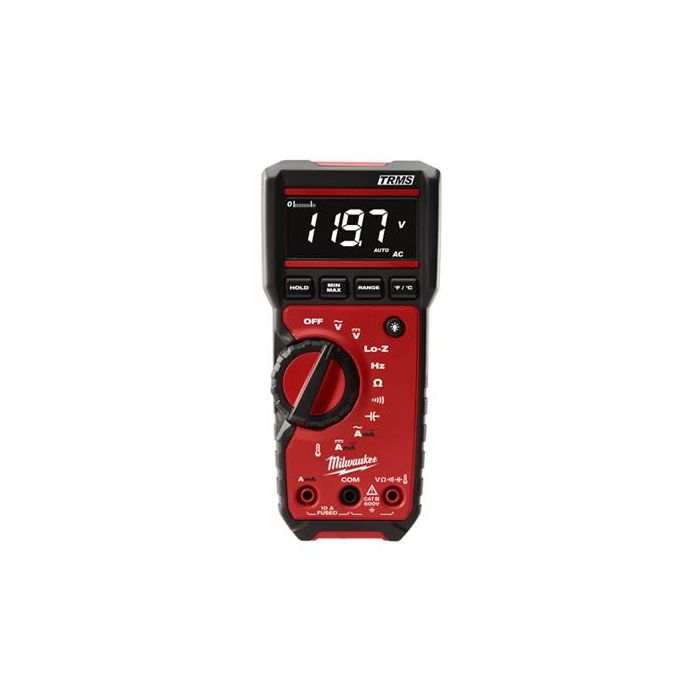

main product photo

Pictures are only for respresentation, actual product may vary, the Model #/SKU/Part number listed above is what you will receive

Brand New


this item condition is new

Special Order


usually ships within 10-15 business days
CA$315.00
Model No: 2217-20NST
Website Product ID: 18874

Features

  • Wide Voltage range to 600 AC /DC volts
  • Auto range to millivolts and milliamp ranges
  • True RMS for accurate measurement in all applications
  • Lo-Z measurement to eliminate ghost voltage
  • Frequency measurements from 10Hz to 50kHz
  • Contact temperature measurement from -40 to 752°F
  • Current Measurement to 10A AC/DC
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Specifications

  • TRMS : Yes
  • Safety Category Rating : CAT III 600V
  • Voltage AC : 6.00mV - 600V
  • Lo-Z : Yes
  • Frequency : 10 Hz - 50.00 kHz
  • Resistance : 40MΩ
  • Continuity : Audible
  • Capacitance : 1,000μF
  • Current AC/DC : 10.00A
  • Backlight : Yes
  • Display Type : White on Black LCD
  • HOLD/MIN/MAX : Yes
  • Bargraph : Yes
  • Rugged Overmolding : Yes
  • Accessory Attachment : Magnetic Meter Holder
  • Tool Warranty : 5 Years
  • Battery Type : Alkaline (AA)
  • Calibration Needed : Yes - Recommend calibration service once every year
  • Switch Type : Dial
  • Length : 6-1/2"
  • Contact Temperature : -40° F to 752° F (-40° C to 400° C)
  • Certifications : NIST

Includes

  • (1) True RMS Multimeter (2217-20NST)
  • (1) Electrical Test Lead Set
  • (1) Dual Banana Thermocouple
  • (2) AA Batteries
  • (1) NIST Certificate of Calibration with Data
  • (1) Manual
